Bulk Milk Cooler in India

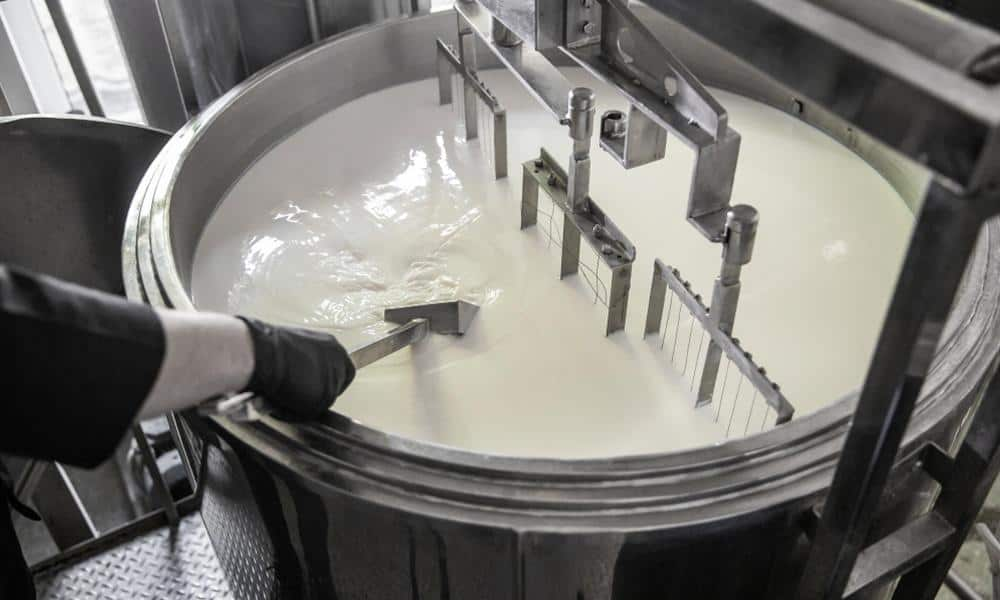

Stainless steel dairy mixing tank for milk processing and dairy farm equipment.
Types of milk coolers
Engineered in various tank configurations to serve village collection centers, dairy cooperatives, and commercial mega-farms.
Bulk MILK COOLERS (BMC)- 300 L
Gross: 350 L • CR-22 Compressor • Single/Three Phase
BULK MILK COOLERS 500 L
Gross: 550 L • CR-22 Compressor • 2520 kcal/hr
BULK MILK COOLERS -1000 L
Gross: 1100 L • CR-36 Compressor • 5310 kcal/hr
BULK MILK COOLERS- 3000 L
Gross: 3200 L • Dual 3 Ton Condensing Units • 3-Phase
BULK MILK COOLERS- 5000 L
Gross: 5200 L • 4x 3 Ton Condensing • 30240 Kcal/hr
Bulk Milk Cooler 300/ 500/1000 L
(300 L/ 500L/ 1000 L)
| Rated capacity | 300 L/ 500 L/ 1000 L |
| Gross Capacity | 350 L/ 550L/ 1100 L |
| Cooling Capacity (kcal/hour) | 2520 / 2520 / 5310 |
| Thermo Plate | Imported |
| Construction material | AISI 304 SS |
| Sheet Thickness (Inner / Outer) | 2MM / 1.5MM |
| Agitator RPM / Number | 21 / 1 |
| Insulation Density | 40 kg/m³ |
| Thickness of Insulation | 50 MM |
| Make of compressor | Emerson Copeland |
| Model of Compressor | CR-22 / CR-22 / CR-36 |
| Temp Range Considered | 35°C to 4°C |
| Power requirement | Single / Three Phase |
Bulk Milk Cooler 2000/3000/5000 L
(300 L/ 500 L/ 1000 L)
| Particulars | 2000 / 3000 / 5000 L |
| Gross Capacity | 2200 / 3200 / 5200 L |
| Rated capacity | 2000 / 3000 / 5000 L |
| Thermo Plate | Imported |
| Construction material | AISI 304 SS |
| S. Thick Inner / Outer | 2MM / 1.5MM |
| Agitator RPM / Number | 21 / 1 |
| Insulation Density | 40KG/CU.M |
| Thickness of Insulation | 50 MM |
| Make of compressor | Emerson Copeland Complete KIT (Made in Canada) |
| Type of Condensing Unit | 5 ton / 3 ton each / 3 ton each |
| No. of Condensing Unit | 1 / 2 / 4 |
| Model of Compressor | 572 |
| Cooling Capacity | 30240 Kcl/hour |
| Type of Refrigerant | R-22 |
| Ambient Temp | As per ISO 5708 II A |
| Maximum cooling time | 3.0 hours |
| Temp Range Considered | 35°C -> 4°C |
| Power requirement | Three Phase |
| Connected Load | 13040 watts |
Specific features
We offer closed type bulk milk coolers ensuring better performance. We are leading in manufacturing and delivering the best quality coolers that have durability and best performance.Our milk coolers are made from high-quality stainless steel that is easy to maintain and use. Our uniquely designed coolers are in high demand in the industry and are installed in the dairy farms. We have a wide customer base all over India as we are well known for the availability of coolers with different capacities with various configurations.
These coolers have the large opening lids for free access and rounded internal corners to facilitate easy cleaning. Tank insulation provided by factory injected polyurethane foam of 50mm and integral condensing unit of hermetic type with R22 refrigerant. As these coolers are designed uniquely to occupy the minimum space with the beneath installed condensing unit
Heavy duty direct expansion milk cooling tanks for dairy farms and chilling centers.
Technical Drawings & Plant Layouts

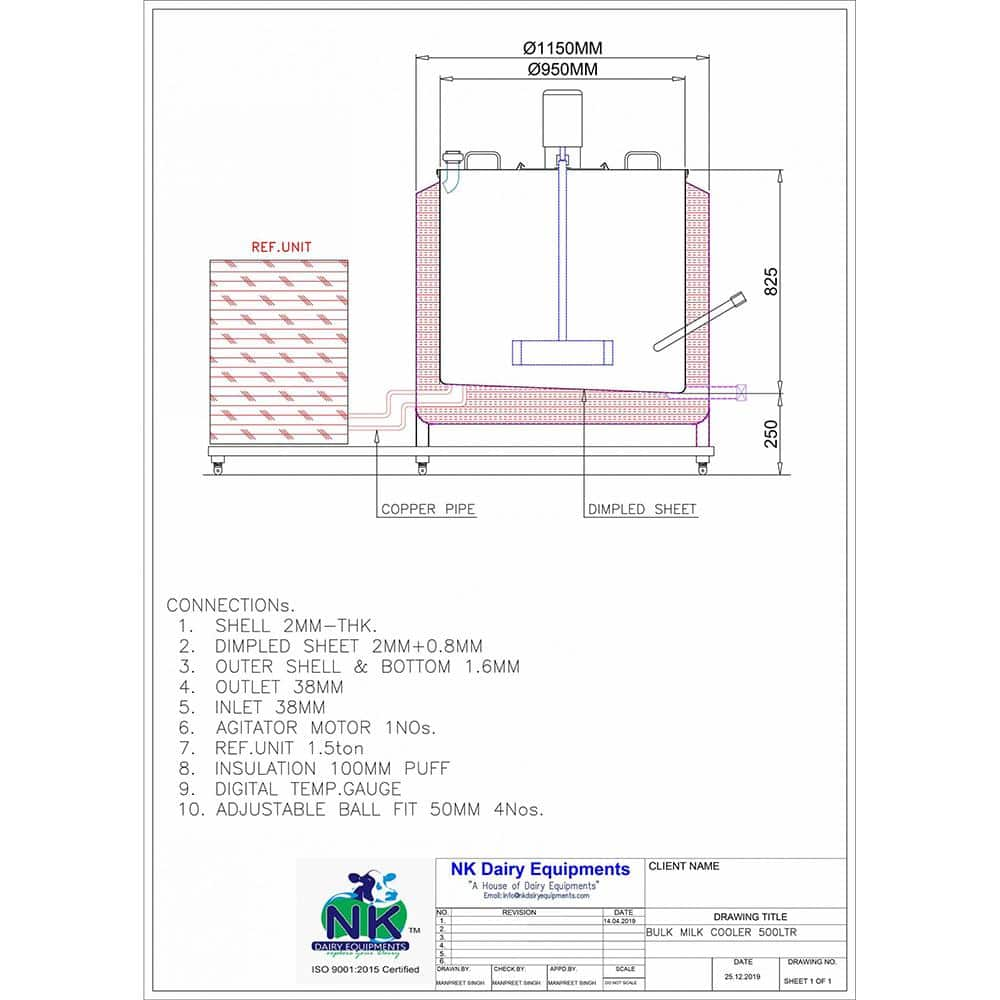

High Capacity Milk Cooler with Dimpled Sheet for Dairy Processing.
Bulk milk cooling equipment with 500-liter capacity, featuring insulated construction and digital temperature control.

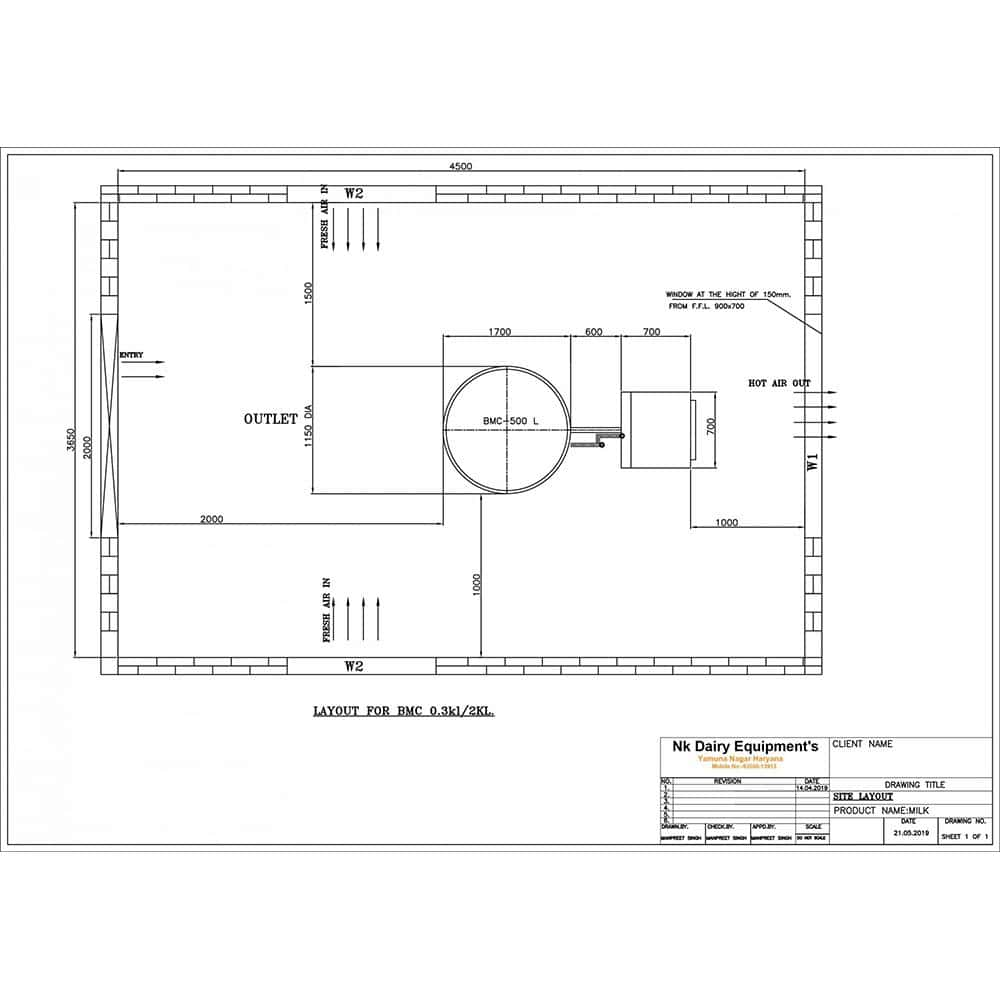

High-capacity dairy processing tank layout design for milk production equipment.
Dairy equipment layout plan for milk processing with tank and outlet positioning.

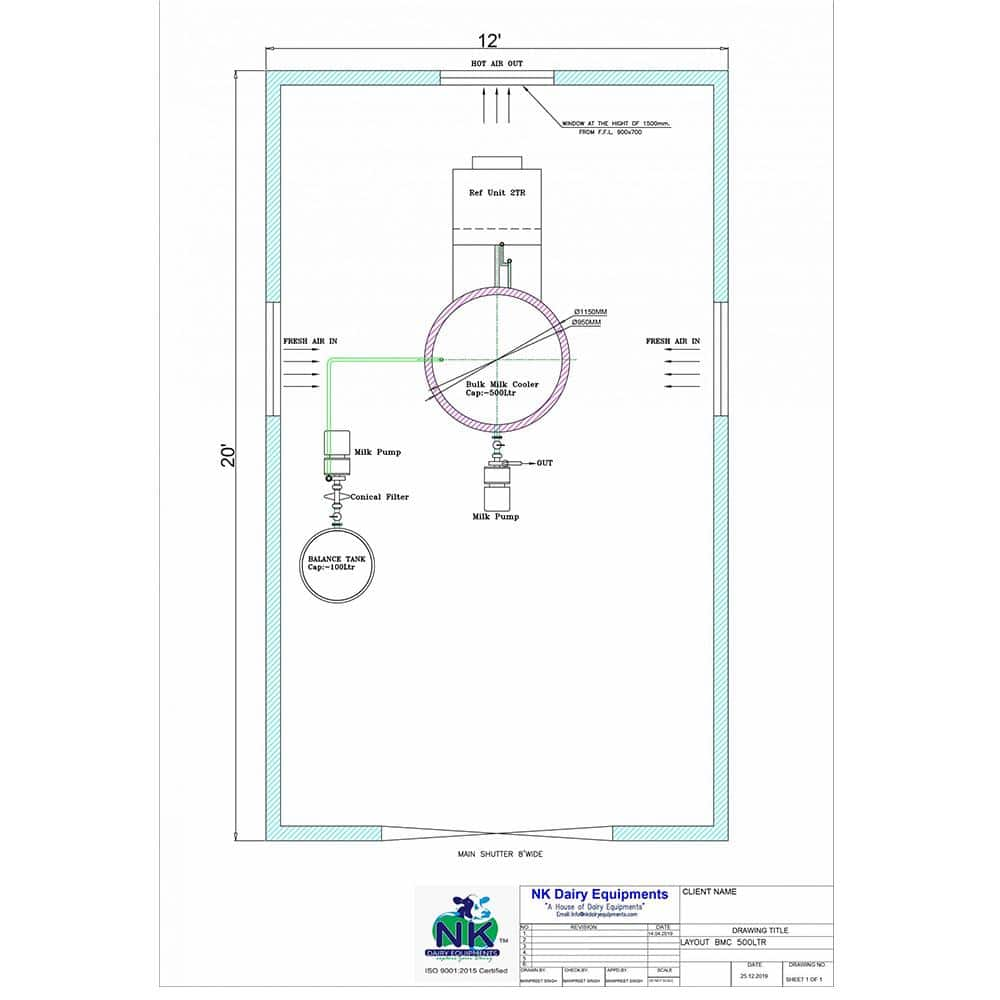

High-quality dairy milk cooling and processing equipment diagram for dairy farm efficiency.
Dairy equipment blueprint for milk cooling, filtration, and storage solutions.
Prices of BMC
We manufacture and supply Bulk Milk Coolers in different capacities and configurations. Prices vary according to the capacity, design, cooling system and customer requirements.
Bulk Milk Coolers are available at different prices depending on their capacity, configuration and specifications. We ensure standardized quality designs at competitive prices.
