Milk Bottle Plant

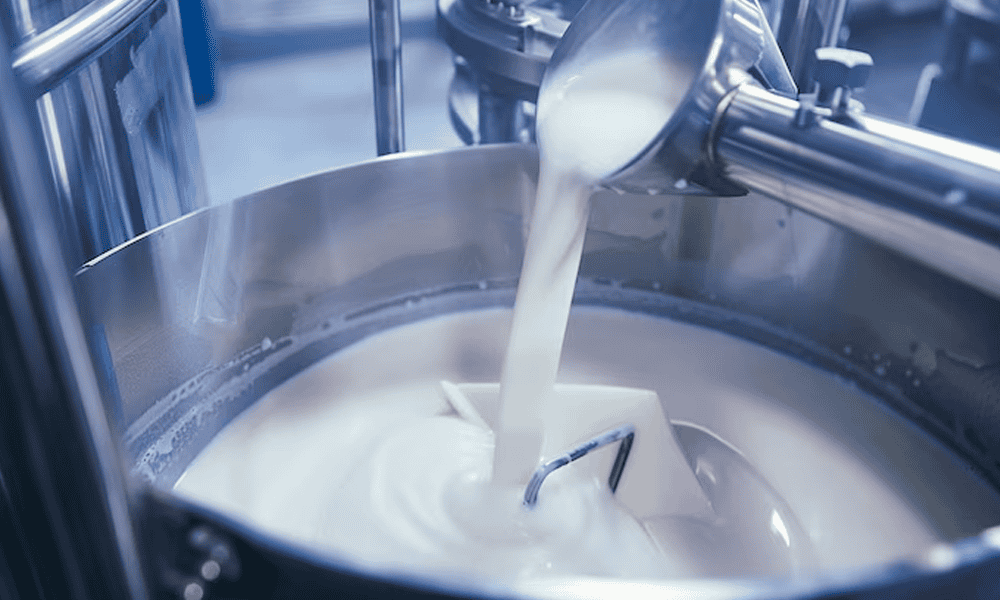

Cream separator machine for dairy processing, stainless steel milk separator, dairy equipment.
Milk Bottle Plant: In the milk plant where the milk is collected and process, stored, pasteurize packing and ready for supply. The piston RE- filling machine has eight and ten cylinders with control system this system is with double stain steel product tank and a bottle rotation system that makes the new and original flan during the process, the piston filling machines processed by unique design without any leakage, and the filling performance is 1 percent. The body has stainless steel, controlled by the PLA operation clean with GMP standard.
Benefits of the Filling Machines
The automatic filling machines allow flowing products with high viscosity things like milk, paste, and jelly. In the line system, 120 bottles can reach per minute and allows 1000 of bottles to be filled each and every day.
Reliability
Hand filling make a variation of the single product, but automatic filling allows for a reliable and consistent for every cycle fill is based on volume, weight, level measurement.
Versatility Operation
Automatic bottle fillers can handle a wide range of container shapes and sizes, these machines can handle multiple products to fill both thin and thick product. Handle a wide range of container size and the shapes, most of the machine to fill both thin and thick liquids.
Dairy Processing & Packaging Schematics
Technical process layout and high-speed bottling line automation.

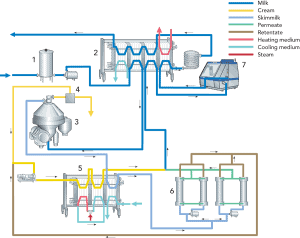

Milk processing equipment schematic diagram for dairy product manufacturing.
Dairy equipment system with milk, cream, skimmilk, and heating mediums.
- Multi-stage heat exchanger and pasteurizer skid
- Centrifugal cream separator & skimmilk extraction
- Integrated heating medium, cooling medium, and steam lines

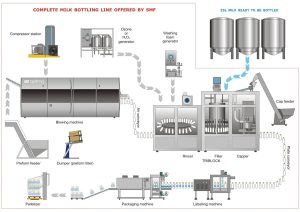

High-capacity milk bottling line for dairy industry automation and processing efficiency.
Automated dairy milk packaging line with filling, capping, labeling, and palletizing machinery.
- Air conveyor & blowing machine bottle feeder
- Tri-block rotary rinser, precision piston filler, and capper
- Automatic labeling, shrink packaging, and palletizer system
Complete Automated Conveyor & Packaging Execution
From sterile washing, no-drip piston filling, to automatic capping and date coding—engineered for maximum hygiene, zero downtime, and GMP compliance.
Technical Specifications
Built with double stainless steel tanks and high-precision rotary piston systems.
| Specification Parameter | NK Dairy Equipment Standard |
|---|---|
| Bottling Line Speed | Up to 120 Bottles / Minute (1,000s of bottles daily) |
| Filling Mechanism | 8 & 10 Cylinder Piston RE-filling System with Bottle Rotation |
| Filling Accuracy | ±1% Precision (Volumetric, Weight & Level Measurement) |
| Material of Construction | Double Stainless Steel Product Tank (SS-304 / SS-316L) |
| Compatible Liquids | Thin & High Viscosity Liquids (Milk, Flavored Milk, Paste, Jelly) |
| Bottle Types Supported | Glass Bottles, HDPE, PET, Wide Range of Shapes & Sizes (200ml – 2L) |
| Hygiene Standard | GMP Standard Certified • Clean-in-Place (CIP) Integrated |
| Control & Operation | PLC / Touchscreen Interface with Automated No-Bottle-No-Fill Sensor |
Set Up Your Milk Bottle Plant
Connect with our bottling automation engineers to configure your filling speed, bottle sizes, and turnkey dairy packaging line layout.
